UNDER CONSTRUCTION

Problem

Dupont (2001) presented an analytical solution for a closed circular domain on an f-plane with a linear bottom friction. The governing equations are

  (1)
  (2)
  (3)

where and are the depth-averaged current velocities in the and directions respectively, is the gravitational constant, is the water surface elevation with respect to mean sea level, is a linear bottom friction coefficient, is the radius of the domain, is the water depth, and is a constant equal to the gradient of the wind forcing.

Solution

The analytical solution for water surface elevation solution is given by

  (1)

The current velocities are independent of the Coriolis parameter and are given by

  (3)
  (4)

Setup

Figure 1. Computational grid.

The model is run to steady state from zero current and water level initial conditions with , , and . Table 1 shows the general settings used for CMS-Flow. Figure 1 shows the computational grid with 5 levels of refinement from 2000 m to 125 m.


Table 1. General Settings for Wind-driven flow in a circular basin

Parameter Value
Time step 3600 s
Simulation Duration 72 hrs
Ramp Period 24 hrs
Initial Water Depth 10 m
Mixing Terms Off
Wall Friction Off
Linear Bottom Friction Coefficient 0.001



Results

Figure 1. Analytical current velocities and water levels.

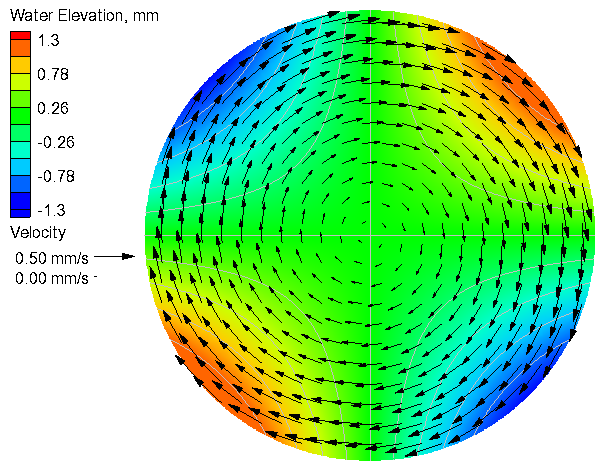

Figure 1. Calculated current velocities and water levels.
Figure 1. Analytical current velocities and water levels.

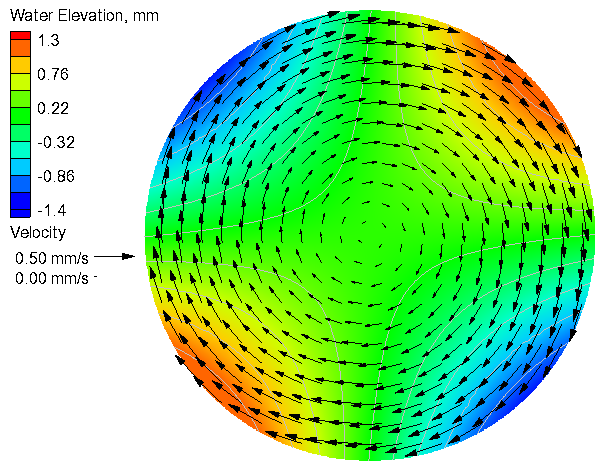

Figure 1. Calculated current velocities and water levels.


Table 2. Goodness of fit statistics for the current velocity and water level

Variable RRMSE, % RMAE, % R^2 Bias
U-Velocity 3.88 0.64 0.997 -4.06e-5
V-Velocity 3.87 0.64 0.997 4.06e-5
Water Level 0.16 0.13 1.000 -3.56e-6
