Utilities

Time Series Analysis

filter1d.m

Filter1D: Time Series Analysis Tool

• The Matlab utility provides users of the SMS, a one-stop package for preparing model input time series and allows users to interpolate, resample, filter, and transform any type of model forcing and supports SMS compatible file formats for ease of data transfer.
• The main feature of the software is the ability to apply high-pass, low-pass, band-pass, and band-stop filters to time series.
• There are many types of filters available, and each have their own advantages and disadvantages.
• Filter1D uses a windowed sinc filter which is a non-recursive finite impulse response filter.
• Wiki Manual Filter1d
• Download Matlab script filter1d.m

TAP Interface

TAP: Tidal Analysis and Prediction software

• • TAPtides is the ideal package to explore and develop preliminary or finalized tidal predictions from serial records spanning several weeks to several months.
  • Designed to be easy to use, its Graphical User Interface permits quick separation of a time series of water level measurements into its tidal and non-tidal components using a selective least squares harmonic reduction employing up to 35 tidal constituents.
  • After saving the tidal constants for the constituents selected during analysis, the user can generate predictions of the astronomical tide, the water level that varies at known tidal frequencies attributable to gravitational interactions between the earth, moon, and sun.
• Wiki Manual for TAPtides TAPtides
• Wiki Manual for TAPcurrents TAPcurrents
• Download software TAP.rar

Post-processing

• Sediment transport integration tool

Matlab scripts

Read CMS-Flow solution files

• Description: Reads the CMS-Flow XMDF (*.h5) solution file in Matlab. Can read individual datasets are the whole solution.
• Usage:

     filename = 'test_sol.h5';
     sol = readcmsh5(filename);
     wse = readcmsh5(filename,'Water_Elevation');
     [wse,uv] = readcmsh5(filename,'Water_Elevation','Current_Velocity');

• Download Matlab script readcmsh5.m

Read SMS Time Series Data File

• Reads the Surface-water Modeling System time-series data (*.tsd) file in Matlab.
• Usage:

    [t,dat,name,units] = read_tsd(file);

• Download Matlab script read_tsd.m

Bin scatter data

Example of xyzbin.m application to multibeam data with 5-m bins.

• Description: Averages the x, y, and z values of points within the same bin. The grid used to define the bins may be user specified are calculated based on the extent of the scatter points.
• Usage:

    [x,y,z] = xyzbin(...)
    [x,y,z] = xyzbin('infile',infile,'outfile',outfile,'dx',dx)
    [x,y,z] = xyzbin('x',xin,'y',yin,'z',zin,'dx',dx)
    [x,y,z] = xyzbin('x',xin,'y',yin,'z',zin,'dx',dx,'dy',dy)
    [x,y,z] = xyzbin('infile',infile,'dx',dx,'x0',x0,'y0',y0,'theta',theta)

• Download Matlab script xyzbin.m:

Extract Time Series from NOAA World Blended Sea Winds

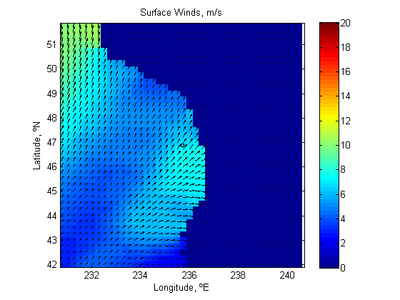

Blended Surface Sea Winds for a section of the North-West US coast.

Extracted winds

• Description: Extracts a time series of wind speed and direction for use in CMS from the 6 hrly global blended sea wind database (http://www.ncdc.noaa.gov/oa/rsad/air-sea/seawinds.html) which has a 0.25º resolution.
• Download Matlab script blended_winds_extract_time_series.m

HDFview

• HDFview is a free visualziation tool for browsing and editing HDF4 and HDF5 files.
• To download or download a free copy visit:

http://www.hdfgroup.org/hdf-java-html/hdfview/index.html

Wave Transformation

• Wave Watch III spectra
• WIS wave spectra
• CDIP Buoy wave spectra
• NDBC Buoy wave spectra

---
