Channel infilling under steady currents

From CIRPwiki
Jump to: navigation, search

Setup

The experiment consist of a trapezoidal channel of uniform find sand (d50 = 0.16 mm) with a steady flow (0.51 m/sec) perpendicular to the channel axis (Gallappatti and Vreugdenhil 1985). The water depth on the upstream bank is about 0.39 m. Three bank slopes were tested: 1:3, 1:7, and 1:10. A flux boundary condition was used at the inlet and a water level boundary condition at the outlet. A constant Manning n coefficient of 0.025 (default) was used. The Lund-CIRP transport formula was used for all three test cases. The morphologic scaling factor was set to 1.0. The adaptation length was calibrated to be 0.6 m.

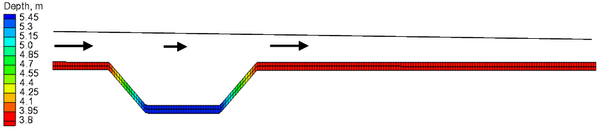

Trapezoidal Channel
Trapezoidal Channel


Results

The figures below show a comparison between measured and computed bed elevations.

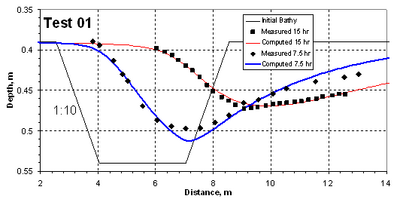

Test 01
Test 01

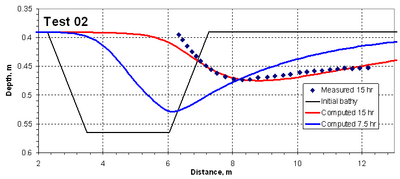

Test 02
Test 02


Test 03
Test 03


References

Gallappatti, G., and Vreugdenhil, C.B. (1985). "A depth-integrated model for suspended sediment transport". J. Hydr. Res., 23(4), 359-377.
