Quick Response Toolbox: Step 10 - Generate Change Table

From CIRPwiki
Jump to navigation Jump to search

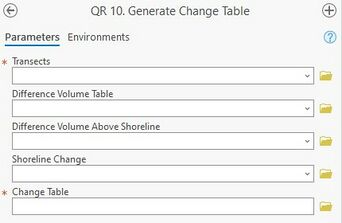

A screenshot of the ArcPro geoprocessing panel for Step 10. The "Transects", "Difference Volume Table", "Difference Volume Above Shoreline", and "Shoreline Change" inputs allow the user to select the files from a dropdown menu or the file explorer. The "Change Table" allows the user to enter the desired file location as a text path or select from the file explorer.
Step 10: Generate Change Table

Summary: This tool combines the information developed in Step 1 through Step 9 into a single table for future querying. It does not require every step be run and entered only those applicable to the user’s interests.

Transects: Transects created in Step 1.

Difference Volume Table: Difference Volume table generated in Step 4.

Difference Volume Above Shoreline: Difference volume above shoreline generated in Step 8.

Shoreline Change: Shoreline change generated in Step 9.

Change Table: Specify the name and location for the output change table.

Output Change Table: This is a table within ArcGIS that contains attributes from the Volume Change, Shoreline Change, and MHW Volume Change tables. The output filename and location are user defined.

[Previous Step]

Useful Links

JALBTCX Main Documentation Page

Refences: Quick Response Toolbox
